| project | abstract | sign | parameter | unit |

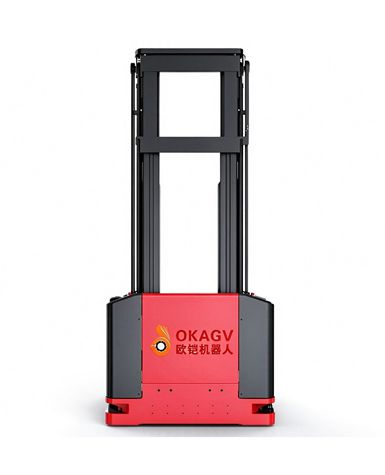

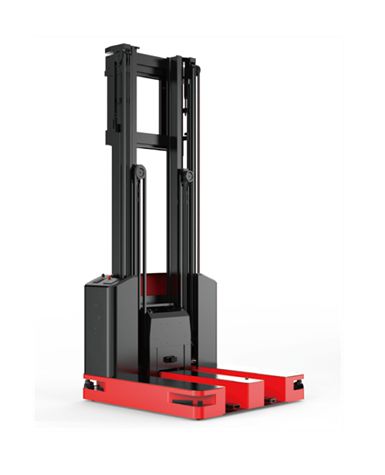

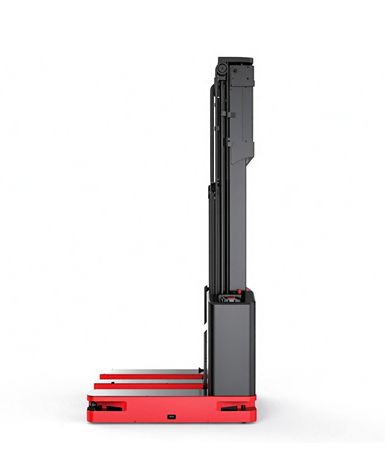

| model | New reach truck laser guided AGV | |||
| Guidance mode | All-new generation laser navigation+natural navigation mixture (switchable according to operation environment) | |||
| Drive mode | Single Steering Wheel Drive (SD) | |||
| Mode of communication | Mode of communication | WLAN (Wireless Local Area Network) | ||
| Communication frequency | 2.4 | GHZ | ||
| transmission speed | 54 | Mbit/s | ||
| system platform | PLC | |||
| Vehicular platform | CVC700 | |||
| Dispatching platform | System Manager | |||
| Precision of straight navigation | ± 10 | mm | ||
| Turning navigation accuracy | ± 10 | mm | ||
| Positioning operation accuracy | ± 10 | mm | ||
| safety protection | advance | Front laser safety scanner (two groups of 6 scan areas are switched by program) | ||
| Left hand turn | Front laser safety scanner (two groups of 4 scan areas are switched by program) | |||
| Right hand turn | Front laser safety scanner (two groups of 4 scan areas are switched by program) | |||
| Back up | Front laser safety scanner (two groups of 4 scan areas are switched by program) | |||
| Protection of fork | Tray sensing sensor | |||
| Body protection | Emergency stop button | |||
| Rated load | Q | 1000 | kg | |
| Load center distance | C | 600 | mm | |
| Height when fork is lowered | H13 | 40 | mm | |
| Standard lifting height | H3 | 3000 | mm | |
| Standard fork size | THICK/WIDTH/LENGTH | S/e/l | 40/100/1200 | mm |
| Overall length | L1 | 1650 | mm | |
| Width of car body | B1 | 1272 | mm | |
| Stacking channel width | 1200 * 1200 | ast | 1850 | mm |
| Travel speed | Straight running speed | MAX | 60 | m/min |
| fork rake | 1300 | mm/min | ||
| Maximum climbing gradient | Full load/no load | 3 | ° | |
| Allowable channel drop | Within the scope of car body | mm | ||
| Allowable trench width | mm | |||
| control voltage | 24 | V | ||
| battery | Lithium iron phosphate battery | 24V/200AH | ||
| quality | 50 | kg | ||
| control mode | AC | |||
| control mode | AC | |||
| control mode | DC | |||
| automatic charger | form | External placement | ||
| Charging mode | Intelligent automatic charging | |||
| Number of phases/voltage | Single phase/220V | |||
| Charging voltage | V | |||
| Service environment | Indoor, temperature: 0 ～ 45 ℃, relative humidity: 40% ～ 90% (without condensation), dry ground without water and oil | |||
